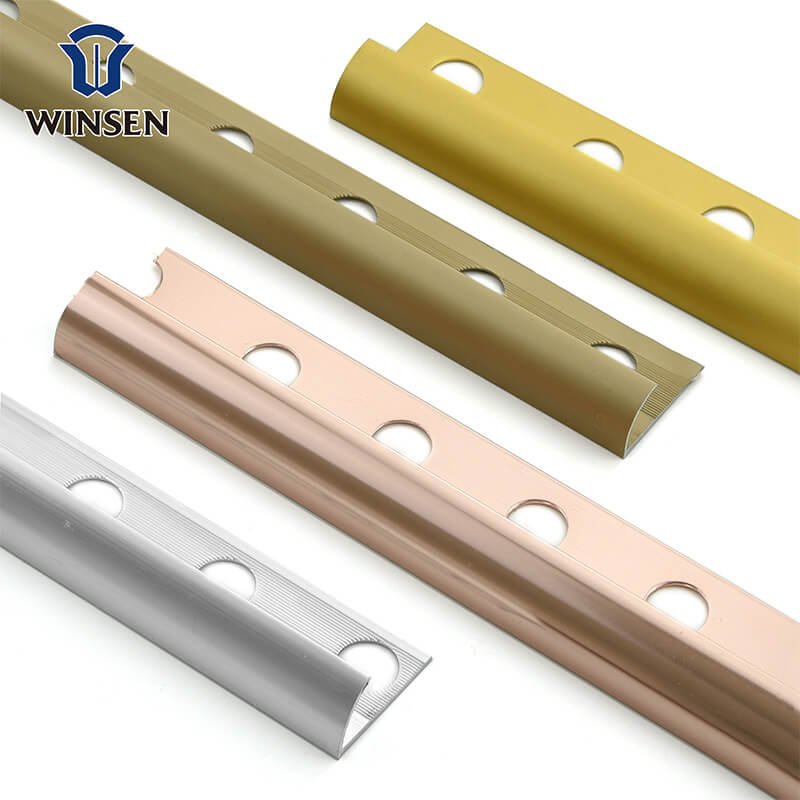

Arc-shaped Trim
Soften sharp 90-degree tile corners and improve environmental safety with WINSEN Arc-shaped Trim, the premium architectural edging engineered to protect vulnerable ceramic and stone boundaries from mechanical impact.
Technical Data Sheet
- Raw Material：6063/6463 Aluminum Alloy
- Certifications：ISO9001, CE, RoHS
- Shape：L shape, Round edge, T shape, Square edge or Customized
- Length：0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized
- Height：7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized
- Thickness：0.5-1.5mm/ Customize
- Color：Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized
- Punching Hole：Round/ trapezoid/ triangle/ regular triangle/ square/ Customized
- Surface Treatment：Anodize, Polish, Matt, Brushed, Powder Coating, Wood Grain, etc.
Application
Surface & Colors
Surface treatment and colors can be customized.
Punching Hole
Customize anchoring hole patterns, dimensions, and positioning for optimal thin-set mortar bonding.
Available in standard and specialty punches (round, square, slot).
Package
Capability
OEM&ODM
Flexible production for distributors, contractors, and private-label programs.
Precision extrusion & molds
3000+ extrusion dies support fast profile matching, new section development, and repeat production.
DWG→DIE→FIRST ARTICLE
Batch-controlled finishes
Anodizing and powder-coating controls keep color and surface treament aligned across repeat shipments.
LAB SAMPLE→MASTER CHIP→BATCH
Punching, labeling & packing
Round, slot, or square mounting holes, branded protective film, and barcoded export cartons.
PUNCH→FILM→PRIVATE LABEL
Any questions?
We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
Q1: How to bend metal tile trim for a curved wall?
A: You need to use a specialized formable trim profile that features a specially pre-punched, notched anchoring leg. Standard rigid trim cannot be bent smoothly without kinking the metal lip. By using formable profiles and carefully shaping them by hand (or using a mechanical tile trim bending machine) around a template, you can perfectly match the radius of curved bathtubs, columns, or serpentine walls before embedding it into the mortar.
Q2: How to install arc shaped tile trim on an outside corner?
A: Embed the perforated anchoring flange tightly into the thin-set mortar on one side of the wall, then lay your tiles completely flush against the profile. When tiling the adjacent wall, butt the second row of tiles directly against the back of the arc profile. This securely locks the trim in place and creates a smooth, 90-degree rounded wrap that protects the exposed ceramic edges from impact.
Q3: What is the best soft corner shower tile edging solution?
A: The best soft corner shower tile edging solution is a rounded bullnose or arc-shaped metal trim profile. Replacing sharp, 90-degree square edges with a smooth, curved boundary prevents cuts and scrapes in slippery, high-risk wet areas. Furthermore, the curved architectural profile effectively deflects mechanical impacts, shielding the fragile ceramic glaze from chipping over time.
Q4: What tile thickness requires a 10mm silver aluminum arc shaped tile profile?
A: A 10mm silver aluminum arc shaped tile profile is specifically engineered to accommodate standard 8mm to 9mm thick ceramic or porcelain wall and floor tiles. Selecting a 10mm depth provides the essential 1mm to 2mm clearance needed for the thin-set mortar bed, ensuring the finished tile sits completely flush with the curved silver lip. The silver anodized finish offers a timeless, neutral accent that coordinates effortlessly with modern gray, white, or marble tile layouts.
Q5: What is a handmade ceramic arc cove trim tile used for?
A: It’s used to create a seamless, curved sanitary transition between wall and floor intersections. Unlike metal profiles, ceramic cove base trims are traditionally fired and glazed to match artisan wall tiles perfectly. The curved “cove” shape eliminates sharp 90-degree internal corners where dirt, mold, and water typically accumulate, making it an ideal hygienic solution for classic bathrooms and commercial kitchens.
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
