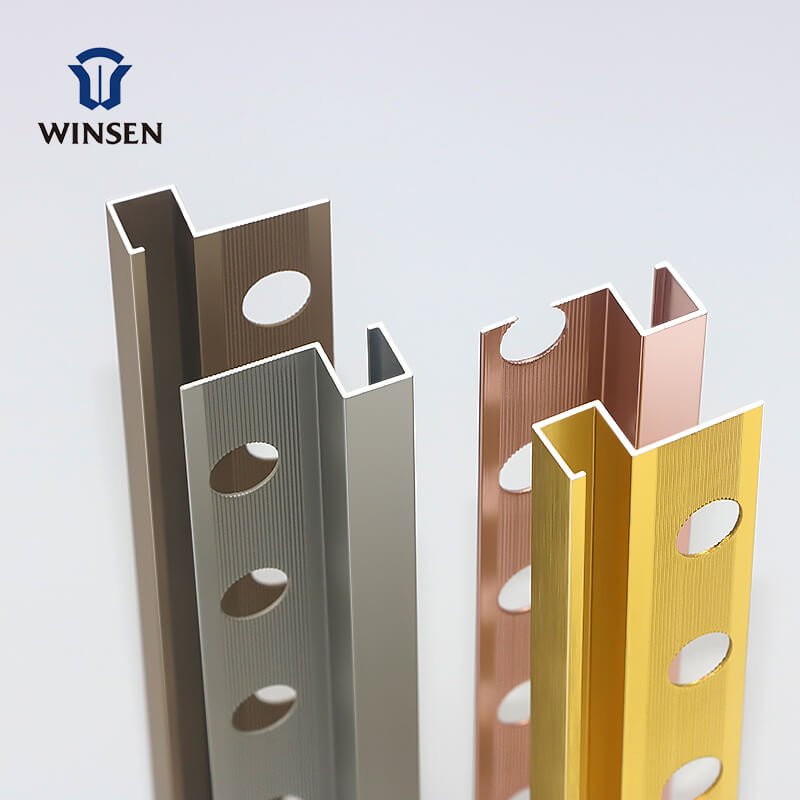

Square Trim
WINSEN square trim creates clean, 90-degree transition lines across external wall corners, shower niches, and countertop reveals while shielding brittle porcelain and stone from mechanical chipping. By delivering a bold, symmetrical finish that completely eliminates the need for complex, time-consuming 45-degree miter cuts, it accelerates installation speed and elevates visual precision across luxury residential and commercial fit-outs.
Technical Data Sheet
- Raw Material：6063/6463 Aluminum Alloy
- Certifications：ISO9001, CE, RoHS
- Shape：L shape, Round edge, T shape, Square edge or Customized
- Length：0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized
- Height：7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized
- Thickness：0.5-1.5mm/ Customize
- Color：Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized
- Punching Hole：Round/ trapezoid/ triangle/ regular triangle/ square/ Customized
- Surface Treatment：Anodize, Polish, Matt, Brushed, Powder Coating, Wood Grain, etc.
Application
Surface & Colors
Surface treatment and colors can be customized.
Punching Hole
Customize anchoring hole patterns, dimensions, and positioning for optimal thin-set mortar bonding.
Available in standard and specialty punches (round, square, slot).
Package
Capability
OEM&ODM
Flexible production for distributors, contractors, and private-label programs.
Precision extrusion & molds
3000+ extrusion dies support fast profile matching, new section development, and repeat production.
DWG→DIE→FIRST ARTICLE
Batch-controlled finishes
Anodizing and powder-coating controls keep color and surface treament aligned across repeat shipments.
LAB SAMPLE→MASTER CHIP→BATCH
Punching, labeling & packing
Round, slot, or square mounting holes, branded protective film, and barcoded export cartons.
PUNCH→FILM→PRIVATE LABEL
Any questions?
We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
Q1: What is the best way to square trim and make clean cuts?
A: The best way to square trim is to use a precision miter saw clamped with a backing block, ensuring the blade perfectly matches your material. For wood, use a standard fine-tooth blade; however, if you are learning how to cut square edge aluminum tile trim, you must use a non-ferrous carbide-tipped blade (80+ teeth) and cut slowly to prevent the metal from burring, twisting, or heating up.
Q2: Should I bother mitering square baseboards, or use flat baseboard coping?
A: You should use a standard butt joint or a miter joint for square baseboards, as flat baseboard coping is technically unnecessary and ineffective. Coping is designed to interlock contoured profiles (like Ogee or Colonial trims). Because a square trim has no curved profile to trace and undercut, a tight 90-degree butt joint (where one flat end simply pushes against the face of the other) or a 45-degree inside miter is the standard way to achieve a seamless inside corner.
Q3: Door Trim: Should I install square trim flush or leave an even reveal?
A: For door trim, you should always leave an even 1/8-inch to 1/4-inch reveal rather than installing the square trim completely flush against the inside edge of the door jamb. Leaving this small step-back (reveal) visually hides minor framing imperfections, prevents the door hinges from binding against the trim, and creates a crisp, professional architectural shadow line.
Q4: Should I use quarter round or square trim to cover a flooring gap?
A: You should use a square edge shoe molding to cover a flooring gap if your space features modern, flat baseboards, whereas a quarter round is better suited for traditional or classic interiors. A square trim perfectly mimics the sharp 90-degree geometric lines of contemporary minimalist baseboards, cleanly bridging the expansion gap between the wall and the hardwood or tile floor without looking outdated.
Q5: Does bright brushed gold aluminum square tile trim tarnish?
A: No, bright brushed gold aluminum square tile trim will not tarnish or turn green because the gold finish is locked within a protective anodized layer. Unlike raw brass, this anodized aluminum profile provides a permanent, rust-proof luxury accent for wall corners and bathroom niches that requires zero polishing to maintain its brilliance.
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
