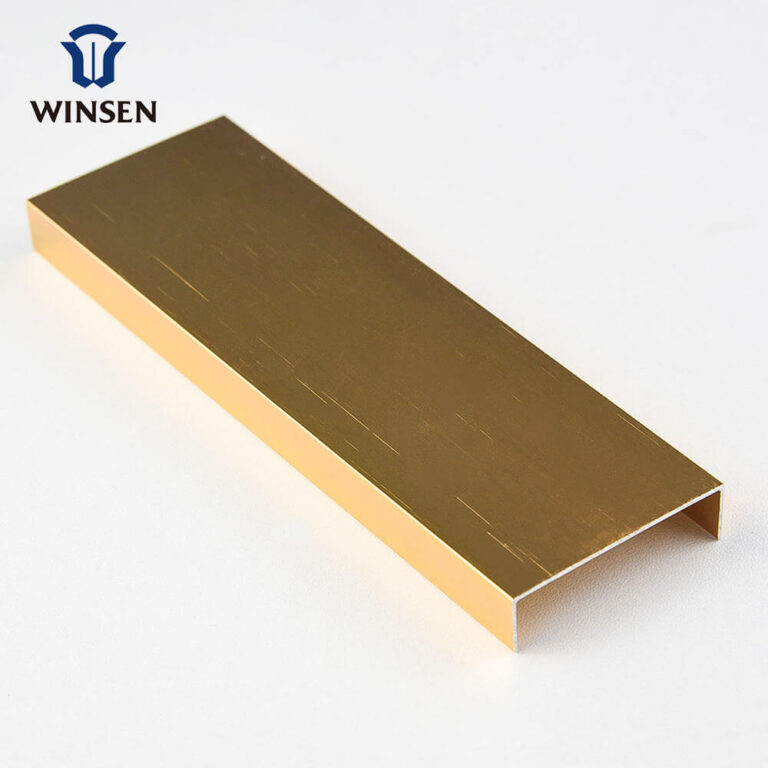

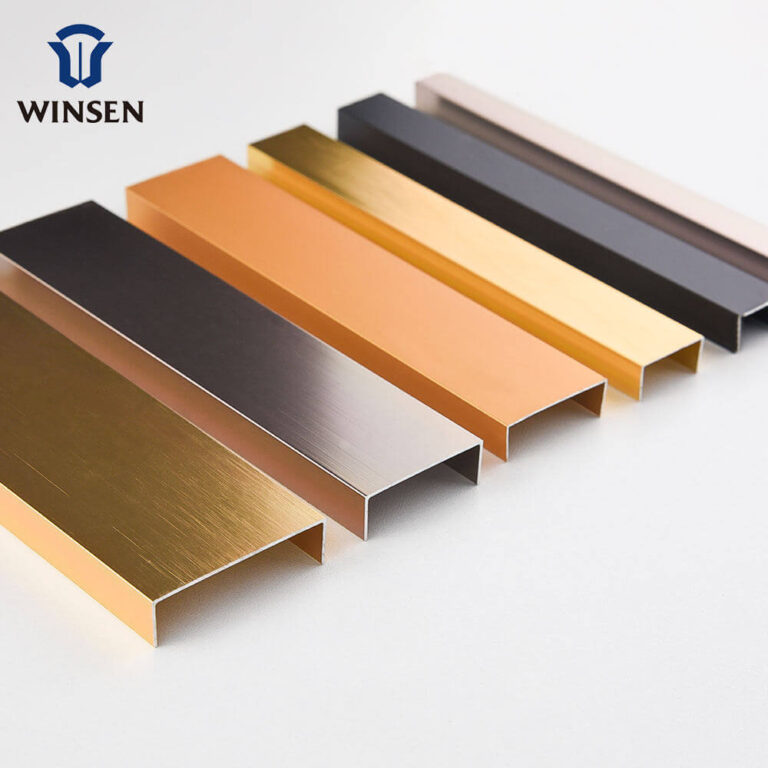

U-Shaped Aluminum Transition Strip
- 6063/6463 Aluminum Alloy
- 201/304/316 Stainless Steel
- Crisp U-Shaped Profile
- 100% Rustproof and High Load-Bearing
- Versatile Anodized & Wooden Finishes & Powder Coating
- Infinite Custom RAL Color Matching
- Full OEM/ODM Customization
Overview
WINSEN U-Shaped Aluminum Transition Strip is a premium architectural inlay and dividing solution engineered to create striking decorative listello accents while seamlessly bridging flush joints between dissimilar floor and wall materials. Extruded from architectural-grade 6063/6463 aluminum alloy or precision-formed from heavy-duty 201/304/316 stainless steel, this versatile channel profile frames ceramic tile layouts, timber wall paneling, and bespoke cabinetry with a flawless, corrosion-resistant finish. By embedding flush into surfaces to deliver crisp, minimalist 90-degree lines that shield vulnerable material borders from everyday abrasion and moisture, it elevates the visual sophistication of modern residential and commercial spaces while saving contractors valuable installation time by effortlessly masking uneven cuts and simplifying complex material transitions.
| Raw Material | Aluminum/Stainless steel | Certifications | ISO9001, CE, RoHS |
| Shape | Customer’s Drawing Shape | Thickness | 0.5-1.5mm/ Customized |
| Length | 0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized | Height | 7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized |
| Color | Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized | Samples Service | Free provided |
| Punching Hole | Round/ trapezoid/ triangle/ regular triangle/ square/ Customized | OEM/ODM | Providing quality one-stop services |
Production Process
Drawing Details
Any questions? We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
Should I use an aluminum or a stainless steel transition strip?
You should choose an aluminum profile for lightweight, cost-effective residential projects, whereas a stainless steel transition strip is required for heavy-duty commercial environments. While both provide excellent moisture resistance, stainless steel offers significantly higher crush resistance against heavy rolling loads, making it the ultimate protective boundary for industrial flooring transitions.
How do U-shaped wood floor transition strips accommodate movement?
U-shaped wood floor transition strips accommodate movement by allowing the hardwood or laminate planks to naturally expand and contract underneath the metal flanges without buckling. Because the wood floor transition strips are typically glued only into the center gap rather than screwed into the wood, the flooring can freely shift with seasonal humidity changes while the metal transition strips remain perfectly in place.
Can you use a U-shaped profile as a tile to tile transition strip?
Yes, you can use a U-shaped profile as a tile to tile transition strip to cleanly divide different tile patterns or seamlessly cover structural expansion joints in large open-concept rooms. This sleek metal transition strip absorbs natural structural movement and prevents the brittle ceramic edges from grinding together and cracking under heavy foot traffic.
Is an Aluminum Transition Strip suitable for a bathroom?
Yes, it is the ideal bathroom transition strip because it is entirely rust-proof, highly durable, and easily withstands daily moisture exposure. Using waterproof aluminum flooring strips prevents water from seeping into the subfloor while safely bridging the gap between wet-area tiles and dry hallway flooring.
What is the purpose of a U-shaped doorway transition strip?
It is to seamlessly join two floors of the same height while covering the necessary expansion gap between rooms. By installing these durable room transition strips directly in the doorway, you protect raw material edges from chipping and create a clean, safe architectural boundary that prevents tripping.
Certifications
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
