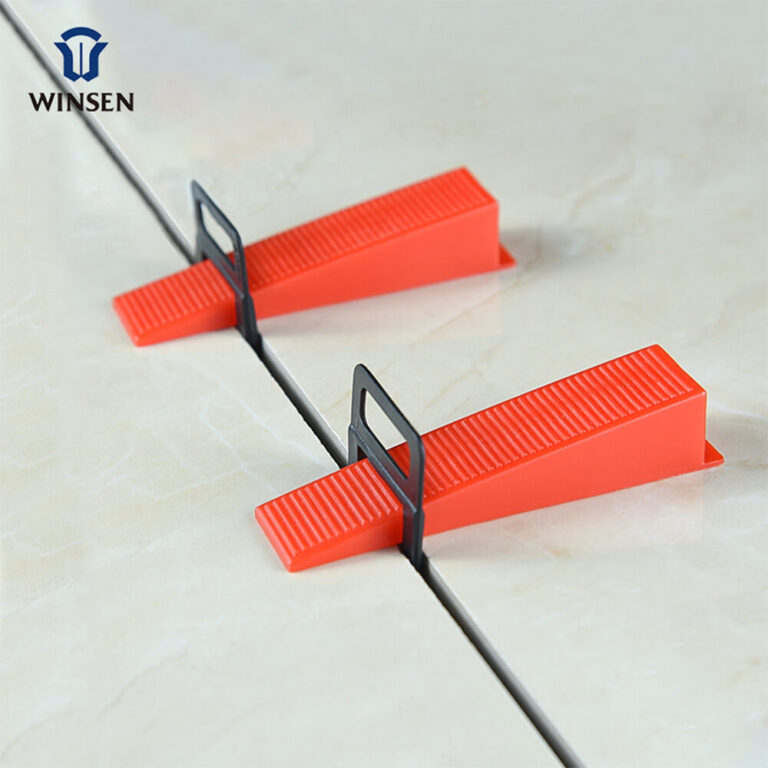

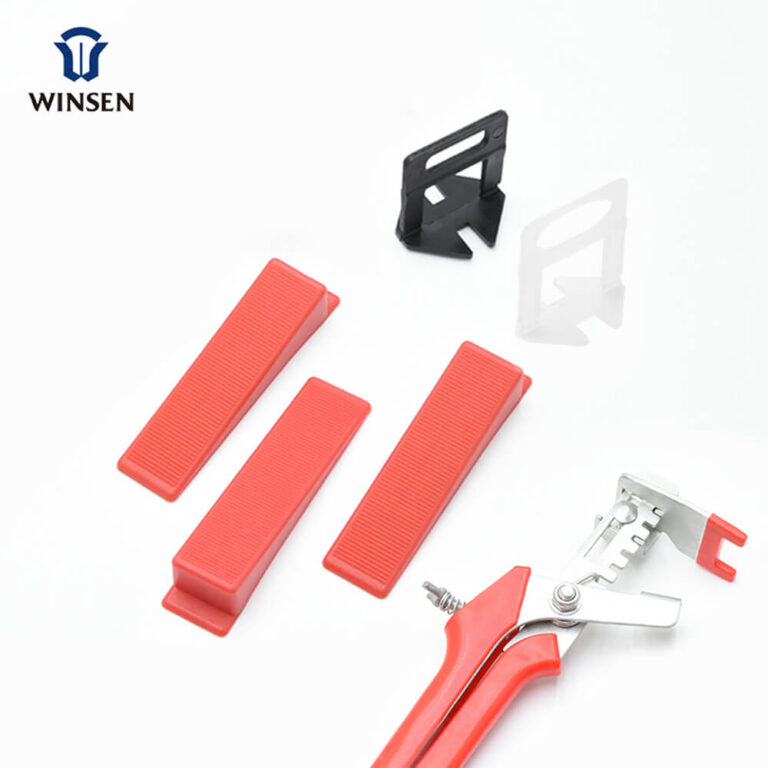

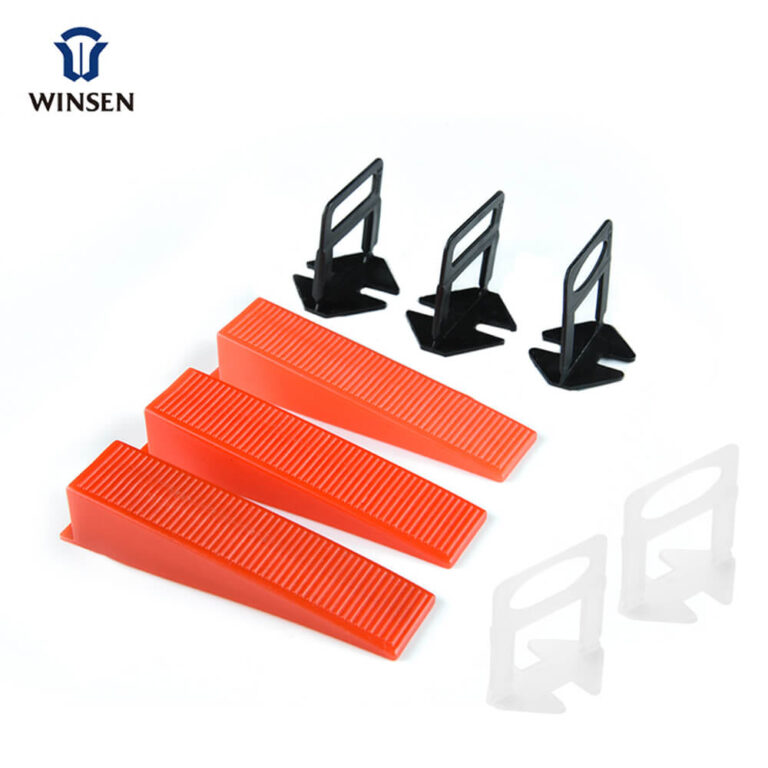

Tile Leveling Clips and Wedges
- Premium PP Material
- Clips & Wedges Combination Design
- Reusable Wedges for Cost-Efficient Installation
- Suitable for Floor & Wall Tile Applications
- Fast & Easy Tile Installation Process
- Suitable for Floor & Wall Tile Applications
- Multiple Tile Thickness Options Available
Overview
WINSEN Tile Leveling Clips and Wedges is a high-performance tile installation system engineered to completely eliminate lippage and guarantee a perfectly flush, level surface across large-format floor and wall layouts. Manufactured from durable, reusable wedges and high-tensile polypropylene clips designed for a clean, subsurface kick-off, this versatile system securely locks porcelain, ceramic, and natural stone tiles into exact co-planar alignment while maintaining precise, uniform grout lines. By preventing tiles from shifting or settling while thin-set mortar cures, it delivers a flawless, showroom-quality finish while saving contractors valuable installation time by significantly increasing laying speed and eliminating costly post-installation grinding or callback repairs.
| Product Name | Tile Leveling Clips and Wedges | Material | Premium Polypropylene |
| Tile Thickness | 5-16mm | Tile Joint Width | 0.35-3mm |
| Packing | Regular Packing: 100 pcs/bag | Application | Suitable for floor and wall tile installation |
| Function | Precise tile alignment, height adjustment, and tile lippage control during installation | MOQ | Flexible MOQ available according to customer requirements |
| Samples Service | Free provided | OEM/ODM | Providing quality one-stop services |
Production Process
Drawing Details
Any questions? We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
How to remove tile leveling clips without breaking the tile edge?
Kick the plastic clips from the side with a work boot or strike them with a rubber mallet parallel to the grout joint.
Clip and wedge tile leveling system vs Spin Doctor: Which is better?
The clip and wedge system offers much faster bulk tensioning across large floors using specialized pliers, whereas the spin doctor relies on hand-tightening individual rotating caps. Professional installers frequently prefer the mechanical leverage of wedges for heavy, large-format porcelain because the pliers eliminate hand fatigue and ensure exactly uniform clamping pressure across every joint.
Should I choose a 1/16 inch or 1/8 plastic tile leveling clips and reusable wedges?
If you desire a standard, more traditional grout joint, whereas 1/16 inch clips are specifically designed for extremely tight, virtually seamless transitions on rectified tiles. Because the thickness of the clip stem determines your minimum grout width, selecting a precise 1/16 inch tile leveling clips and wedges kit allows you to skip using standard cross spacers entirely.
How many tile leveling clips per square foot do I need?
You must consider your tile dimensions; standard 12×24 inch tiles typically require about 2 to 3 clips per square foot. While large-format slabs require fewer clips overall per square foot, you must still place them every 6 to 8 inches along each edge and at the corners to guarantee a consistently flat installation across the entire floor.
How to use tile leveling clips and wedges properly?
Slide the plastic clip base under the edge of the first tile, lay the adjacent tile over the base, and use leveling pliers to push the reusable wedge through the clip’s opening until both tiles are perfectly flush. This mechanical tension pulls the ceramic or porcelain edges into perfect alignment, completely eliminating lippage while the thin-set mortar cures.
Certifications
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
