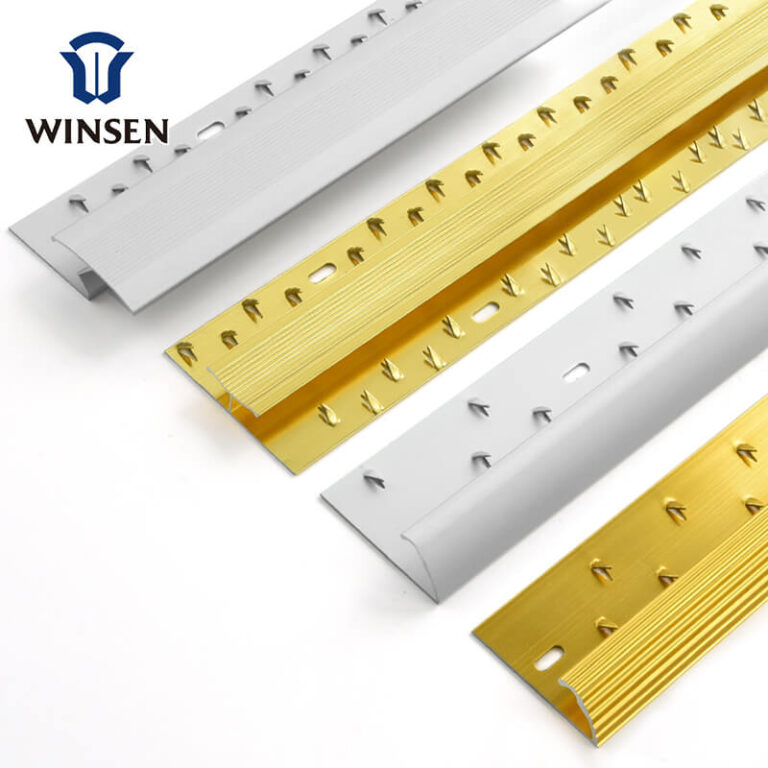

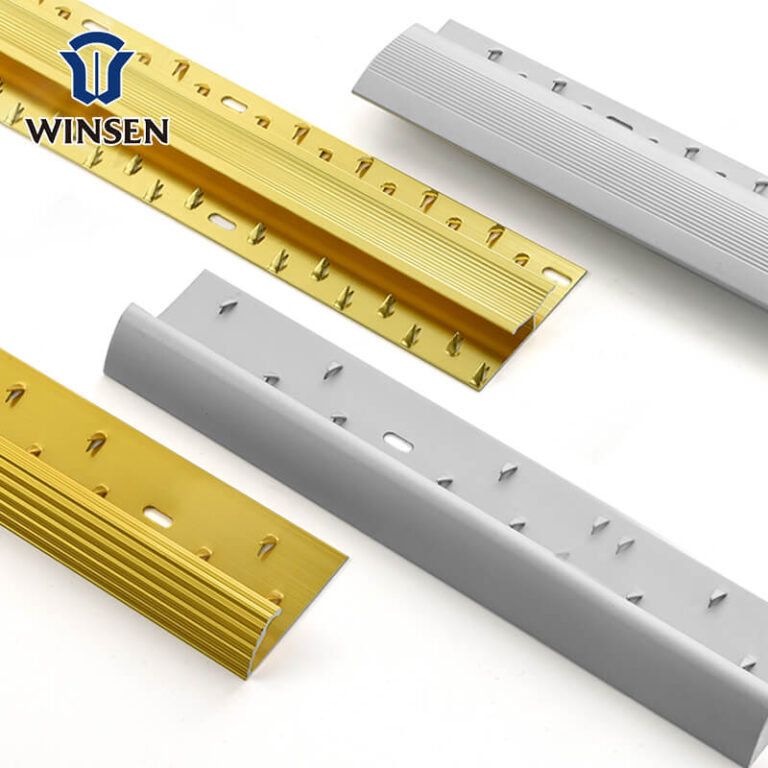

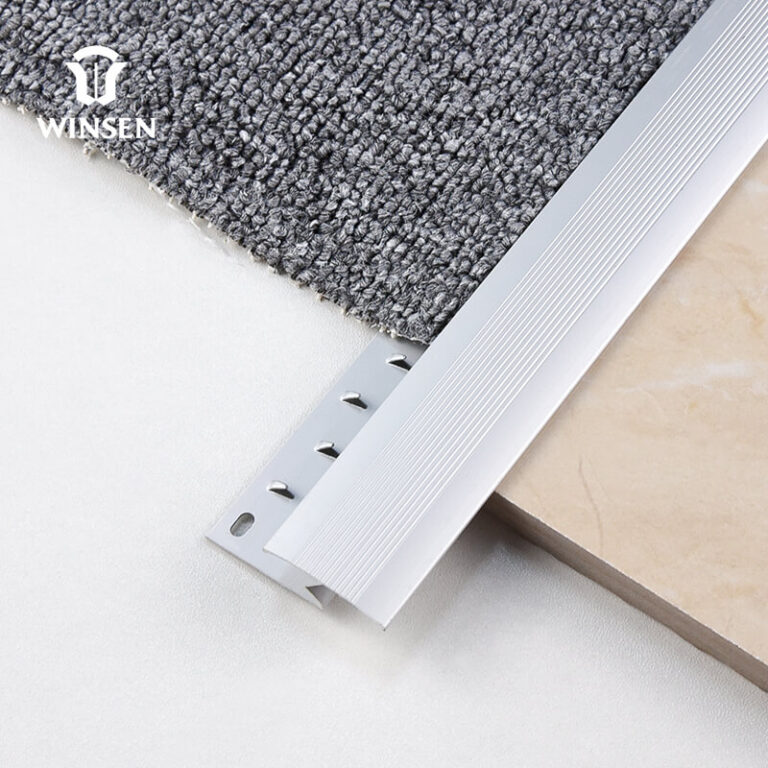

Carpet To Tile Transition Strip
- 6063/6463 Aluminum Alloy
- 100% Rustproof and High Load-Bearing
- Dual-Action Carpet Gripper & Tile Guard
- Versatile Anodized & Powder Coating
- Infinite Custom RAL Color Matching
- Full OEM/ODM Customization
Overview
WINSEN Carpet To Tile Transition Strip is a premium architectural threshold solution engineered to securely clamp soft carpet borders against fraying while simultaneously protecting brittle ceramic tile edges from mechanical chipping. Extruded from high-strength, rust-proof 6063/6463 aluminum, this versatile profile bridges the awkward height and texture discrepancy between plush carpeting and rigid tile floors across hotel corridors, corporate offices, and residential entryways with a flawless finish. By joining differing floor heights into a smooth, sloped ramp that eliminates dangerous trip hazards, it enhances safety for high-traffic residential and commercial spaces while saving contractors valuable installation time by effortlessly anchoring both materials without complex subfloor adjustments.
| Raw Material | 6063/6463 Aluminium Alloy | Certifications | ISO9001, CE, RoHS |
| Shape | Customer’s Drawing Shape | Thickness | 0.5-1.5mm/ Customized |
| Length | 0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized | Height | 7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized |
| Color | Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized | Samples Service | Free provided |
| Punching Hole | Round/ trapezoid/ triangle/ regular triangle/ square/ Customized | OEM/ODM | Providing quality one-stop services |
Production Process
Drawing Details
Any questions? We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
What is the best way to bridge the gap between hard tile and soft carpeting?
The best way to bridge the gap between these two surfaces is to install a dedicated tile to carpet transition strip to secure the raw carpet edges and protect the fragile ceramic tile. Using a specialized transition strip tile to carpet eliminates dangerous tripping hazards while providing a clean, seamless architectural boundary in residential doorways and commercial spaces.
Can you execute a carpet to tile transition without strip?
While it is technically possible to perform a carpet to tile transition without strip using a “turn-and-tack” method (where the carpet is folded back on itself and tacked next to the tile), it is highly discouraged for high-traffic areas. Without a rigid metal or wood cover, the exposed carpet fibers are highly susceptible to fraying from vacuums, and the unglazed edge of the tile remains completely unprotected against chipping from hard impacts.
Why is it necessary to install dedicated carpet to tile transition strips?
You should install dedicated carpet to tile transition strips because they forcibly lock the carpet backing to the subfloor under tension, preventing the fibers from wrinkling or pulling away from the tile over time. High-quality floor transition strips carpet to tile feature internal gripping teeth that hold the soft carpet securely in place, while the solid top flange gracefully meets the rigid tile surface to hide any uneven flooring cuts.
How do transition strips from carpet to tile handle height differences?
Transition strips from carpet to tile handle uneven heights by utilizing a sloped or “reducer” profile that creates a gentle, ADA-compliant incline between the thicker plush carpet and the lower tile surface. By installing a properly angled transition strip carpet to tile, you ensure that wheeled traffic—such as wheelchairs, strollers, or utility carts—can smoothly roll over the threshold without striking or cracking the edge of the ceramic tile.
How do you install a tile to carpet transition strip over a concrete subfloor?
You must use masonry drill bits and concrete anchors to fasten the metal base track directly to the floor before stretching the carpet into it. Utilizing heavy-duty carpet to tile transition strips that mechanically anchor into the subfloor provides a permanent, shift-proof boundary that withstands heavy daily foot traffic far better than temporary adhesive-backed options.
Certifications
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
