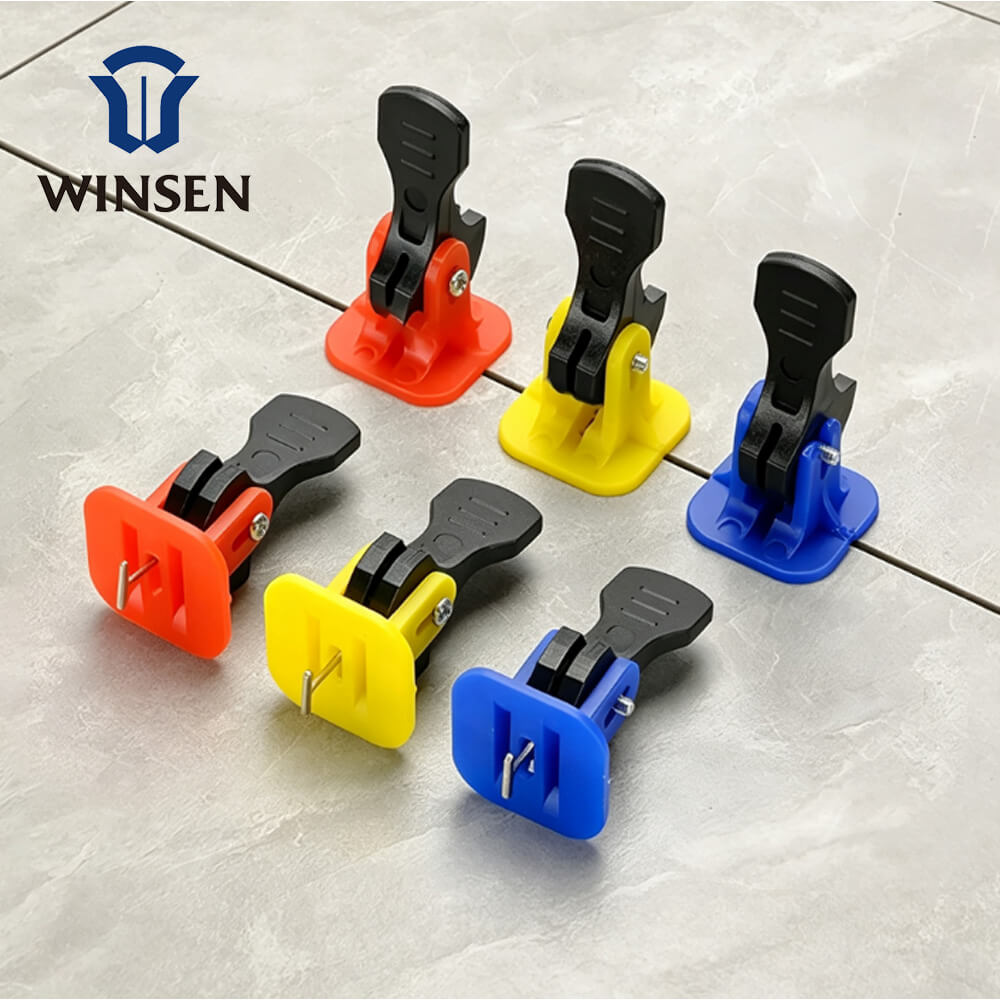

Tile Leveling System
Achieve flawless, lippage-free tile installations on walls and floors with a precision-engineered WINSEN tile leveling system, the ultimate tool designed to secure tile alignment while thin-set mortar cures.
- Complete Lippage Elimination
- Versatile System Designs
- Durable B2B & OEM Customization
Technical Data Sheet
- Raw Material：6063/6463 Aluminum Alloy
- Certifications：ISO9001, CE, RoHS
- Shape：L shape, Round edge, T shape, Square edge or Customized
- Length：0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized
- Height：7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized
- Thickness：0.5-1.5mm/ Customize
- Color：Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized
- Punching Hole：Round/ trapezoid/ triangle/ regular triangle/ square/ Customized
- Surface Treatment：Anodize, Polish, Matt, Brushed, Powder Coating, Wood Grain, etc.
Application
Surface & Colors
Surface treatment and colors can be customized.
Punching Hole
Customize anchoring hole patterns, dimensions, and positioning for optimal thin-set mortar bonding.
Available in standard and specialty punches (round, square, slot).
Package
Capability
OEM&ODM
Flexible production for distributors, contractors, and private-label programs.
Precision extrusion & molds
3000+ extrusion dies support fast profile matching, new section development, and repeat production.
DWG→DIE→FIRST ARTICLE
Batch-controlled finishes
Anodizing and powder-coating controls keep color and surface treament aligned across repeat shipments.
LAB SAMPLE→MASTER CHIP→BATCH
Punching, labeling & packing
Round, slot, or square mounting holes, branded protective film, and barcoded export cartons.
PUNCH→FILM→PRIVATE LABEL
Any questions?
We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
Q1: Are tile leveling systems actually useful for DIY tiling?
A: Yes, tile leveling systems are highly useful and considered essential for DIY, as they completely eliminate “lippage” (uneven tile edges) that naturally occurs due to uneven subfloors or bowed tiles. While professionals can sometimes level smaller tiles by eye and feel, a leveling system guarantees a perfectly flat, trip-free surface, making it the best insurance policy for amateur tile setters.
Q2: Screw vs wedge tile leveling system: Which is better?
A: Wedge systems provide maximum tension and faster installation for professionals using pliers, while screw systems offer easy, tool-free, one-handed adjustments ideal for DIYers. Wedges (like T-Lock or Lash) lock down quickly over large areas, whereas spinning caps (like Spin Doctor) allow you to incrementally dial in the pressure without over-tightening.
Q3: When should I use 1/16 inch Perfect Level Master T-Lock clips?
A: You should use 1/16 inch Perfect Level Master T-Lock clips when installing rectified porcelain, large format marble, or wood-look planks where a minimal, ultra-thin grout line is desired. The 1/16-inch (1.5mm) clip acts simultaneously as a leveler and a precision spacer, delivering an elegant, nearly seamless floor without requiring secondary cross spacers.
Q4: How to use a clip and wedge tile leveling system?
A: Slide the plastic clip base under the edge of the first tile, set the adjacent tile down, insert the wedge through the clip, and squeeze it tight using leveling pliers. Once the thin-set mortar has fully cured (usually 24 hours), use a rubber mallet or your boot to strike the clips parallel to the grout line, snapping them off cleanly below the surface.

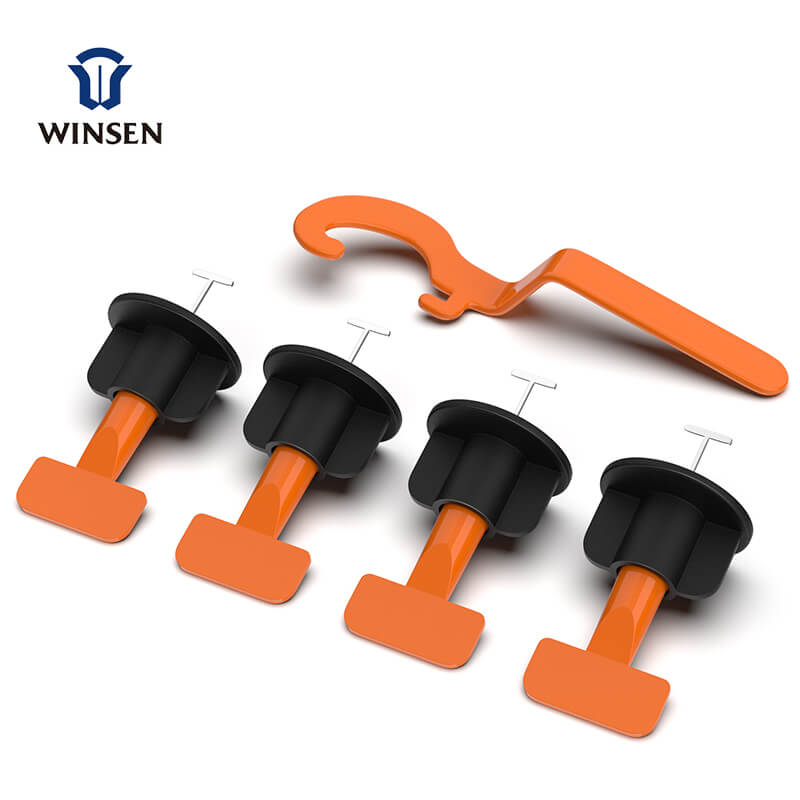

Q5: Why choose a screw type tile leveling system for large format tiles?
A: A screw type tile leveling system for large format tiles provides consistent, downward rotational pressure that easily pushes heavy, bowed porcelain planks perfectly flush. Because large format tiles (over 15 inches) frequently suffer from manufacturer bowing, the micro-adjustability of a threaded spinning cap ensures dead-flat seams without the aggressive snapping force sometimes caused by wedge pliers.
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
