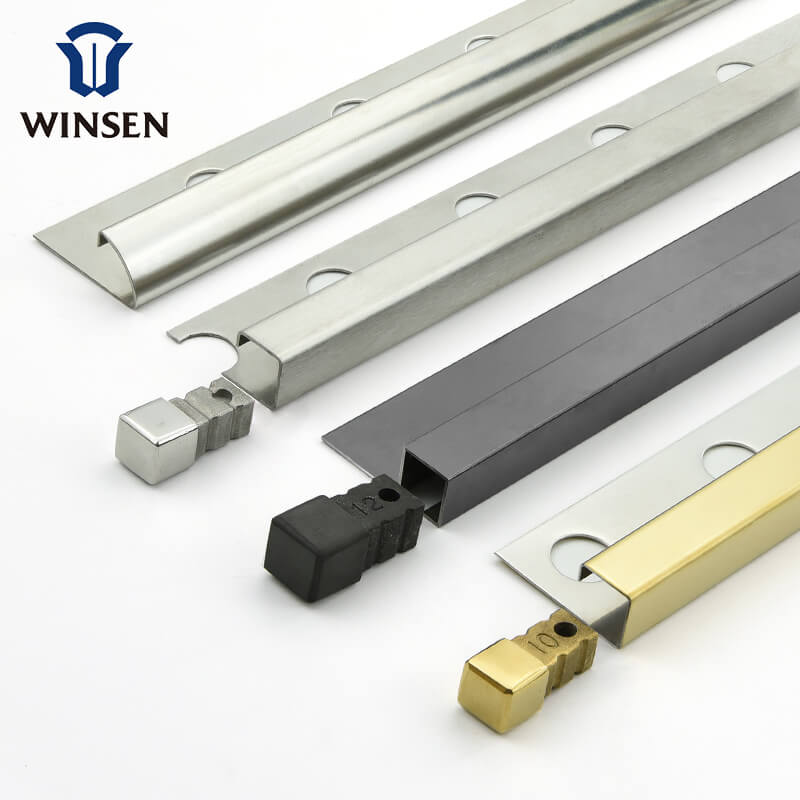

Stainless Steel Tile Trim
Crafted from high-grade 304 and 316 stainless steel, WINSEN stainless steel tile trim collection of square, L-shaped, and decorative transition profiles provides superior chemical and corrosion resistance while creating crisp, modern lines across commercial walls, residential floors, and heavy-duty countertop reveals.
- Maximum Impact & Chemical Resistance
- Superior Edge Defense
- Architectural Luxury Finishes
Technical Data Sheet
- Raw Material：6063/6463 Aluminum Alloy
- Certifications：ISO9001, CE, RoHS
- Shape：L shape, Round edge, T shape, Square edge or Customized
- Length：0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized
- Height：7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized
- Thickness：0.5-1.5mm/ Customize
- Color：Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized
- Punching Hole：Round/ trapezoid/ triangle/ regular triangle/ square/ Customized
- Surface Treatment：Anodize, Polish, Matt, Brushed, Powder Coating, Wood Grain, etc.
Application
Surface & Colors
Surface treatment and colors can be customized.
Punching Hole
Customize anchoring hole patterns, dimensions, and positioning for optimal thin-set mortar bonding.
Available in standard and specialty punches (round, square, slot).
Package
Capability
OEM&ODM
Flexible production for distributors, contractors, and private-label programs.
Precision extrusion & molds
3000+ extrusion dies support fast profile matching, new section development, and repeat production.
DWG→DIE→FIRST ARTICLE
Batch-controlled finishes
Anodizing and powder-coating controls keep color and surface treament aligned across repeat shipments.
LAB SAMPLE→MASTER CHIP→BATCH
Punching, labeling & packing
Round, slot, or square mounting holes, branded protective film, and barcoded export cartons.
PUNCH→FILM→PRIVATE LABEL
Any questions?
We’re Here to Help.
Explore answers to the most common inquiries, carefully curated to save you time and guide your decisions.
Need further assistance? Our team is just a message away.
Q1: How to cut stainless steel tile trim cleanly without burning the metal?
A: Use a variable-speed angle grinder equipped with a premium ultra-thin metal cutting disc (specifically rated for inox/stainless) and operate at a low speed. High cutting speeds generate excessive friction and heat, which can discolor the steel (blueing) and warp the profile. Always clamp the trim tightly to a workbench, cut slowly, and use a fine metal file to remove burrs before embedding it into mortar.
Q2: What is the difference between 304 vs 316 stainless steel tile trim?
A: In a 304 vs 316 stainless steel tile trim comparison, Grade 304 provides excellent general corrosion resistance for residential bathrooms and kitchens, while Grade 316 contains added molybdenum for maximum defense against chlorides and harsh chemicals. This extreme chemical resistance makes heavy-duty 316 grade stainless trim for commercial kitchens, swimming pools, hospitals, and exterior marine environments the mandatory choice to prevent pitting and rust.
Q3: Where is brushed stainless steel square edge tile trim 10mm best applied?
A: A brushed stainless steel square edge tile trim 10mm is best applied on external wall corners, shower niches, and countertop edges utilizing standard 8mm to 9mm thick tiles. The 10mm depth allows enough room for the tile and thin-set mortar, while the square box shape creates a bold, contemporary 90-degree geometric line that absorbs mechanical impact.
Q4: Do you offer standard 2.5m long 304 grade stainless straight edge trim?
A: Yes, the global industry standard length is 2.5 meters (8 feet 2 inches), and we manufacture 2.5m long 304 grade stainless straight edge trim to accommodate full-height wall installations. Using 2.5m lengths allows contractors to complete floor-to-ceiling shower corners and tall commercial wall features with minimal vertical seams, ensuring a flawless visual finish.
Q5: What is the purpose of an L-shaped stainless steel tile transition strip?
A: An L-shaped stainless steel tile transition strip is designed to create a minimalist, heavy-duty floor boundary between same-height surfaces like ceramic tile, natural stone, and engineered hardwood. Its slim, discrete metallic edge protects brittle floor materials from chipping under heavy commercial foot traffic or rolling carts while maintaining a seamless, level transition.
Need a Custom Profile?
Don’t see the exact dimension or finish your project requires?
We specialize in full OEM & ODM manufacturing. Submit your specifications or customization demand, let our in-house engineering team bring your exact blueprint to life.
